Self-Closing Delay Taps & Urinal Flush Valves: Commercial Water-Saving Solutions

Save up to 60% on water consumption in high-traffic facilities with our precision-engineered delay taps and urinal flush valves. Designed for airports, hospitals, service stations, and commercial buildings, these automatic fixtures combine durability, hygiene, and water efficiency in a single, maintenance-friendly solution.

Our self-closing delay taps activate with a simple press and automatically shut off after 2-5 seconds, eliminating waste from taps left running while maintaining optimal user experience. Built from solid brass construction with premium electroplated finishes, these fixtures withstand millions of cycles in demanding commercial environments.

Key Applications: Airports • Hospitals • Highway Service Areas • Shopping Centers • Schools • Office Buildings • Sports Facilities

Product Features & Specifications

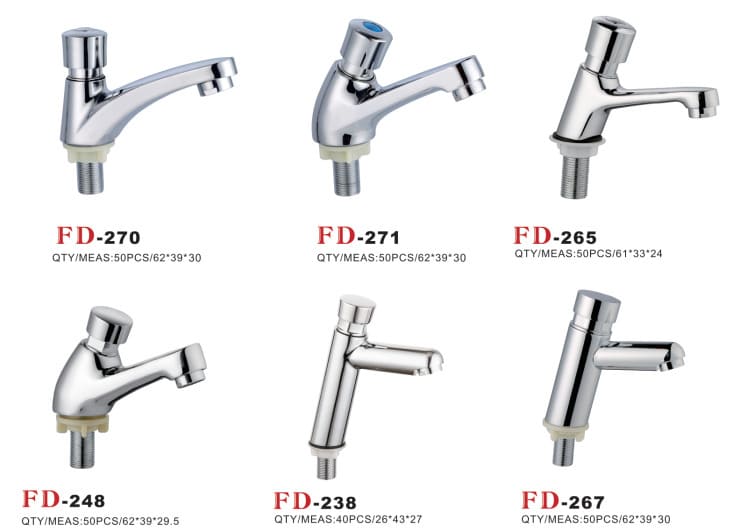

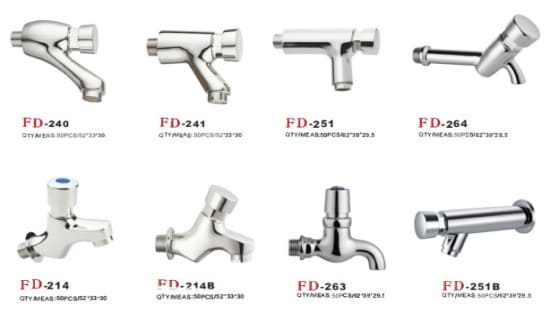

Self-Closing Delay Taps (Time Delayed Taps)

Technical Specifications:

• Delay Time: Adjustable 2-5 seconds (factory set at 3 seconds)
• Construction: Solid brass body with corrosion-resistant internals
• Finish Options: Chrome, Brushed Nickel, Antique Brass
• Operating Pressure: 0.5-8 bar (7-116 PSI)
• Connection: Standard 1/2″ BSP or NPT threads
• Flow Rate: 6L/min (1.6 GPM) at 3 bar pressure
• Certification: CE marked, WRAS approved, NSF certified

Key Benefits:

• Water Savings: Reduces consumption by 50-60% vs. manual taps
• Hygiene Enhancement: Touch-activated operation minimizes cross-contamination
• Vandal Resistant: No moving external parts to break or damage
• Easy Maintenance: Serviceable internal cartridge system
• Universal Design: Compatible with existing plumbing installations

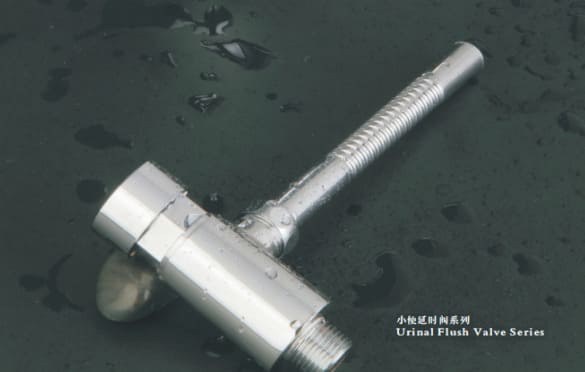

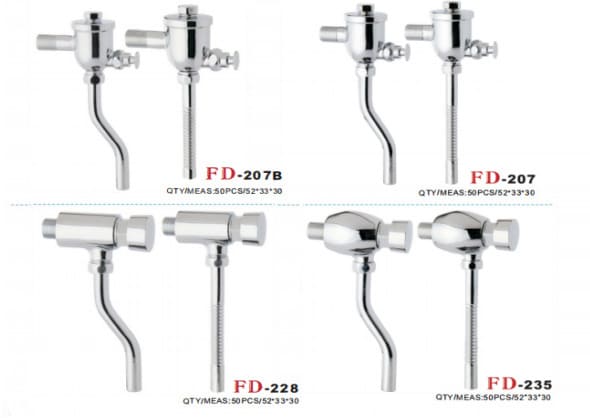

Urinal Flush Valves (Automatic Delayed Flush)

Technical Specifications:

• Flush Duration: 2-4 seconds programmable timing
• Water Volume: 1-4 liters per flush (adjustable)
• Body Material: Heavy-duty brass construction
• Inlet Connection: 1/2″ or 3/4″ male threads
• Outlet Connection: Standard urinal spigot fitting
• Operating Pressure: 1-6 bar (14-87 PSI)
• Temperature Range: 1°C to 60°C (34°F to 140°F)

Advanced Features:

• Anti-Siphon Protection: Built-in vacuum breaker prevents backflow
• Adjustable Volume: Field-adjustable flush quantity
• Quiet Operation: Engineered for minimal noise in sensitive environments
• Corrosion Resistance: Marine-grade internal components

Applications & Installation Scenarios

High-Traffic Commercial Facilities

Airports & Transportation Hubs:

• Handles 500+ daily activations per fixture
• Stainless steel vandal-resistant button options
• ADA compliant activation force (≤5 lbf)
• 24/7 operation capability with minimal maintenance

Healthcare Facilities:

• Antimicrobial surface treatments available
• Hands-free operation reduces infection risk
• Easy cleaning with hospital-grade disinfectants
• Compliant with healthcare facility water efficiency standards

Highway Service Areas:

• Weather-resistant finishes for varying climates
• Heavy-duty construction for high-volume use
• Simple operation for international travelers
• Reduced maintenance frequency saves operational costs

Water Conservation Performance

Construction & Quality Features

Premium Brass Construction

Material Benefits:

• Corrosion Resistance: Solid brass withstands harsh water conditions
• Durability: 500,000+ cycle life expectancy
• Machinability: Precise internal passages for consistent performance
• Antimicrobial Properties: Natural brass reduces bacterial growth
• Recyclability: Environmentally responsible end-of-life disposal

Electroplated Finish Options

Chrome Finish:

• Mirror-bright appearance for modern aesthetics
• Easy cleaning and maintenance
• Scratch and tarnish resistant
• ROHS compliant coating process

Brushed Nickel Finish:

• Contemporary satin appearance
• Hides water spots and fingerprints
• Suitable for high-humidity environments
• Enhanced durability coating system

Antique Brass Finish:

• Traditional warm appearance
• Suitable for heritage and classic installations
• Natural aging characteristics
• Specialized protective coating

Installation & Maintenance

Installation Requirements

Plumbing Connections:

• Standard 1/2″ BSP or NPT inlet connections
• Compatible with existing commercial plumbing
• Isolation valves recommended for maintenance access
• Pressure regulator required if system pressure >6 bar

Mounting Specifications:

• Wall-mounted design with concealed fixings
• Minimum 150mm clearance below spout
• ADA compliant mounting heights available
• Vandal-resistant security screws included

Maintenance Protocol

Preventive Maintenance Schedule:

• Monthly: Visual inspection and cleaning
• Quarterly: Operation test and adjustment check
• Annually: Internal cartridge inspection
• Bi-annually: Complete disassembly and cleaning

Common Service Items:

• Replaceable timing cartridge (5-year typical lifespan)
• O-ring seal kit for pressure connections
• Activation button assembly (vandalism replacement)
• Internal strainer screen (hard water areas)

Service-Friendly Design:

• Front-access service panel for easy maintenance
• Standard tools required (no specialized equipment)
• Clear component marking for technician efficiency
• Comprehensive service manual included

Product Variants & Customization

Standard Product Range

Custom Solutions Available

Timing Modifications:

• Extended delay times (up to 10 seconds)
• Dual-stage timing for different user needs
• Temperature-compensated timing mechanisms
• Flow rate adjustments for water pressure variations

Finish Customization:

• Color-matched to facility design schemes
• Special coatings for harsh environments
• Logo engraving and branding options
• Anti-graffiti surface treatments

Specialized Applications:

• Ultra-quiet operation for hospitals
• High-security prisons and detention facilities
• Food service and commercial kitchen variants
• Outdoor installations with weather protection

Technical Support & Service

Installation Support

Pre-Installation Services:

• Site survey and compatibility assessment
• Water pressure and flow rate analysis
• Custom specification development
• Installation training for facility maintenance teams

Technical Documentation:

• Detailed installation drawings and specifications
• Plumbing connection diagrams
• Maintenance schedules and procedures
• Troubleshooting guides and spare parts catalogs

Ongoing Support

Warranty Coverage:

• 5-year comprehensive warranty on all components
• Extended warranty options for high-usage installations
• Worldwide service network for international projects
• Emergency replacement parts program

Training Programs:

• On-site technician training available
• Video-based maintenance tutorials
• Quarterly technical webinars
• Direct technical support hotline

Why Choose Our Delay Taps & Urinal Valves?

Proven Performance Record

Over 15 Years of Excellence:

• Installed in 50+ countries worldwide
• 99.7% customer satisfaction rating
• Millions of units in daily operation
• Zero critical safety incidents reported

Engineering Advantages

Superior Design Features:

• Patented timing mechanism for consistent performance
• Corrosion-resistant internal components
• User-friendly activation requiring minimal force
• Fail-safe design ensures reliable water shutoff

Economic Benefits

Total Cost of Ownership:

• 60% reduction in water costs
• Minimal maintenance requirements
• Long service life reduces replacement costs
• Improved facility hygiene reduces cleaning costs

Return on Investment:

• Typical payback period: 12-18 months
• Water savings continue for 15+ years
• Reduced maintenance labor costs
• Enhanced facility reputation for sustainability

Request Quote & Technical Consultation

Ready to reduce water consumption and improve hygiene in your commercial facility? Our technical team provides comprehensive support from specification through installation and ongoing maintenance.

Contact Information:

• Technical Sales: Available for custom specifications and volume pricing
• Engineering Support: Site assessments and installation planning
• Service Network: Worldwide maintenance and parts support
• Emergency Service: 24/7 support for critical installations

Quote Requirements:

• Facility type and expected usage volume
• Existing plumbing specifications and water pressure
• Quantity requirements and installation timeline
• Special requirements (finishes, certifications, custom features)

Transform your commercial restroom facilities with proven water-saving technology. Contact us today for technical specifications, pricing, and installation support tailored to your specific requirements.

All specifications subject to change without notice. Consult factory for most current technical data and certification status. Installation must comply with local plumbing codes and regulations.
